Polycom Installations

Here's recap of various Polycom Room Systems calling scenarios:

  1. Point to Point Video Calling between Skype (or Teams, or any other Windows conferencing client) & the Polycom Room System: Use the VCR Audio and Video outputs of the Room System as a conference room web cam inputs to the VSS-1 system & the one Skype remote/mobile user.

  2. A Skype GVC (Group Video Call) with the Polycom Room System: Use the VCR Audio and Video outputs of the Room System as a conference room web cam inputs to the VSS-1 system & the remote/mobile Skype GVC group - e.g. with 10 video and 25 audio participants.

  3. Adding a VSS-1 Skype user to an H.323 video conference with the Polycom Room System & another remote H.323 site: use the H.239 VGA and Audio inputs from the VSS-1 system and Skype.

  4. Adding a VSS-1 Skype user to an H.323 video conference with the Polycom Room System & multiple remote H.323 sites: use the H.239 VGA and Audio inputs from the VSS-1 system and Skype.

  5. Adding a group of VSS-1 Skype users (GVC) to an H.323 video conference with the Polycom Room System & multiple remote H.323 sites: use the H.239 VGA and Audio inputs from the VSS-1 system and Skype.

Here's information from the Polycom HDX Administrator Guide for the A & V output settings needed for Skype:

For the Polycom HDX systems here are the common connectors for the HDX series:

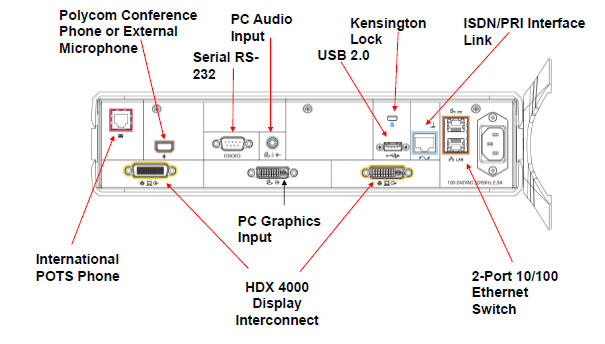

HDX 4000 connections:

HDX 6000 connections:

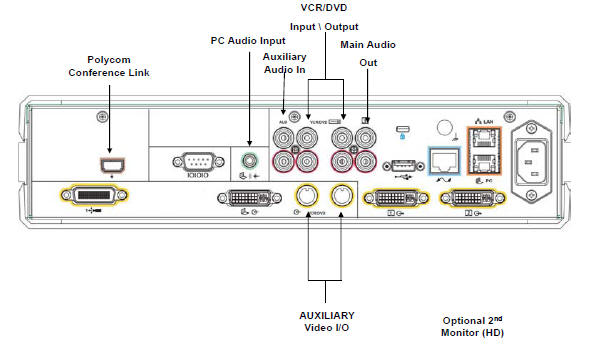

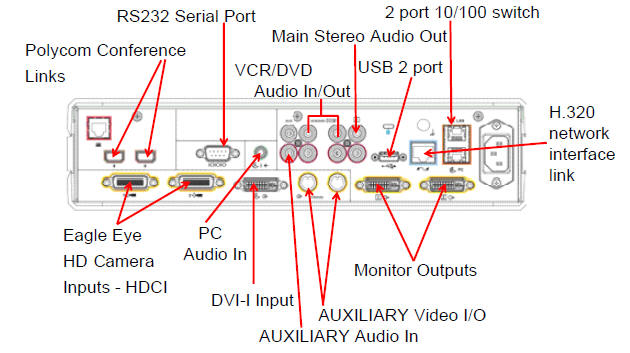

HDX 7000 connections: prior to rev D

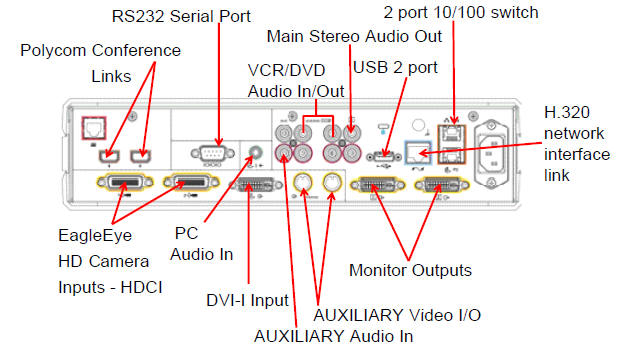

HDX 7000 connections: rev D

HDX 8000 connections:

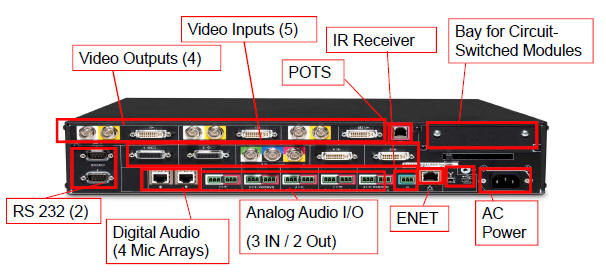

HDX 9000 connections:

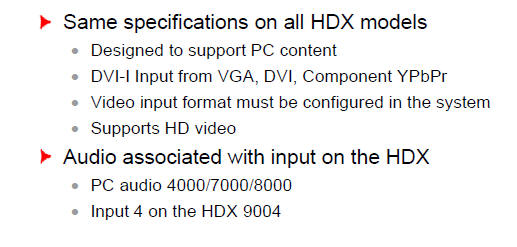

PC Based Content Input - Audio & Video - H.239 -  incl. Skype

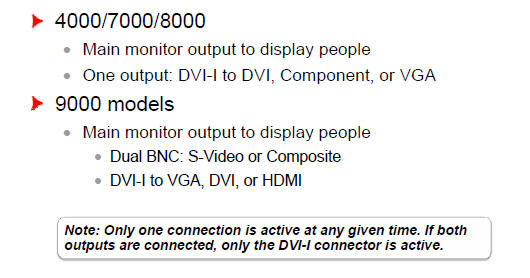

Video Output - Main Monitor

All HDX 7000 series systems come with 2 DVI to component cables.

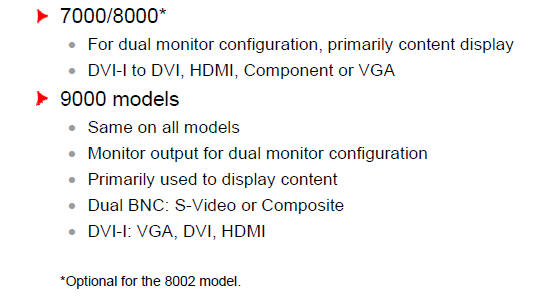

Video Output 2 - Second Monitor

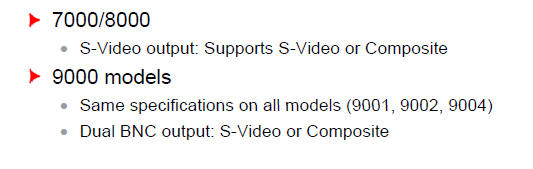

Video Output 3

The HDX 7000 Rev D and beyond has no Video Output 3 - i.e. no s-video output, so you need to use the DVI video output ports for VSS-1 applications DVR recording etc.

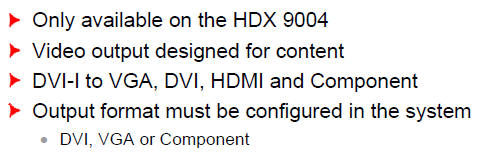

Video Output 4

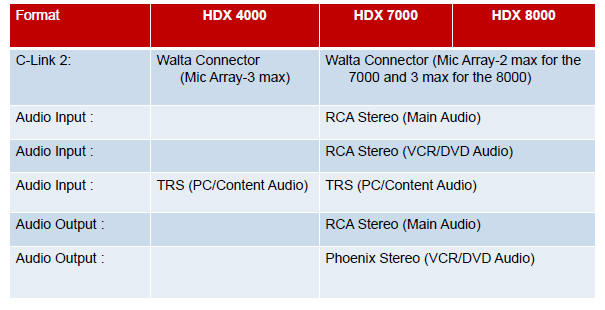

Audio Inputs/Outputs - HDX 4000, HDX 7000, HDX 8000

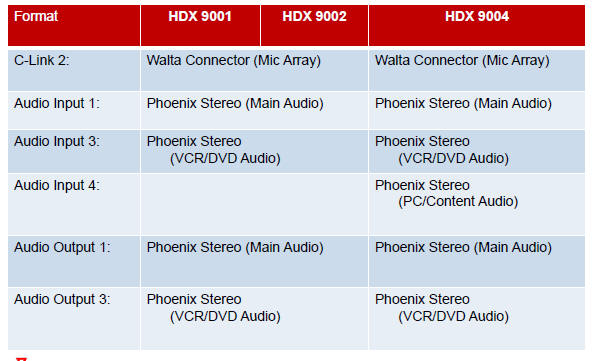

Audio Inputs/Outputs - HDX 9000

Audio Inputs/Outputs - HDX HDX 7000, HDX 8000

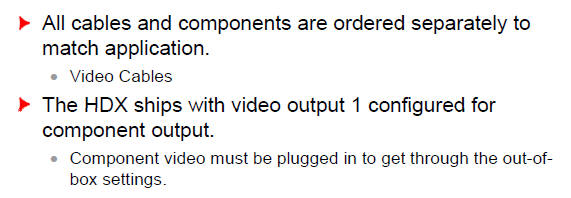

Some Cable Issues:

HDX Series Systems - Audio/Video Outputs > Inputs into the VSS-1 System

QDX 6000
