VSS-1 & Polycom VSX Systems Installations

For the Polycom VSX systems here are the common setup guides & connections:

• VSX5000_setup.pdf
• VSX6000_setup.pdf
• VSX7000_setup.pdf
• VSX8000_setup.pdf
• VSX_family_brochure.pdf
• Q3-Q4 2005 Polycom Product_Transitions.pdf

The following diagrams show the various VSX and VSS-1 connections:

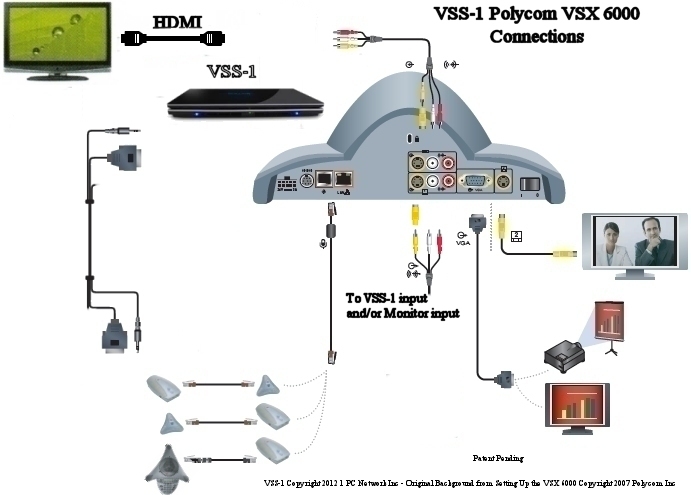

VSX 6000 and VSS-1 connections	VSX 7000 and VSS-1 connections	VSX 8000 and VSS-1 connections

Here's recap of the various VSX Room Systems calling scenarios:

Use the VCR Audio and Video outputs of the VSX Room System as a conference room web cam inputs to the VSS-1 system & the one Skype remote/mobile user:

1. for Point to Point Video Calling between Skype & the VSX Room System:


2. for a Skype GVC (Group Video Call) with the VSX Room System:

When joining an H.323 conference, use the H.239 VGA and Audio inputs to the VSX Room System from the VSS-1 system and Skype:

1. for adding a VSS-1 Skype remote/mobile use to an H.323 video conference with the VSX Room System & another remote H.323 site:


2. for adding a VSS-1 Skype remote/mobile use to an H.323 video conference with the VSX Room System & multiple remote H.323 sites:


3. for adding a group of VSS-1 Skype remote/mobile users (GVC) to an H.323 video conference with the VSX Room System & multiple remote H.323 sites:

Here's the information from the Polycom Administrators Guide for the A & V output settings needed for Skype:

1. Polycom VSX system VCR output settings.pdf
